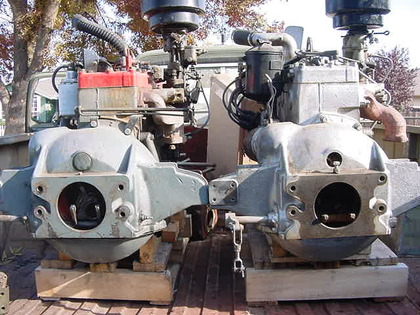

Note the differences in the bolt patter in Dodge power wagon bell-housings , On Left is the later after 1956 up with a larger center hole and On The Right Early 1955 back all WWII & all M37 transmissions.
1799592-2 Bell Housing from 1959-60 dodge Truck 318 Poly, 3 speed , 4 speed np420,

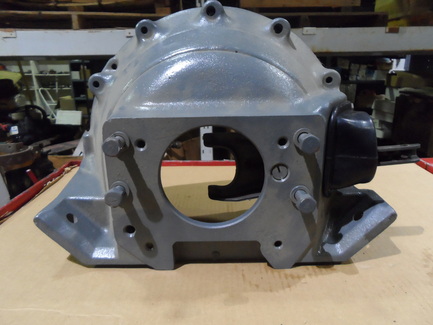

This is a Small Block hydraulic clutch type bell housing use from 1961to 68 in Big Dodge trucks engine 273 ,340, 318 & 360 . . Bolt Patten for Transmission late NP420 4sp with the v8 input , np435 4sp & np540 5sp . Casting p/n , 15" flywheel with 11" clutch assy

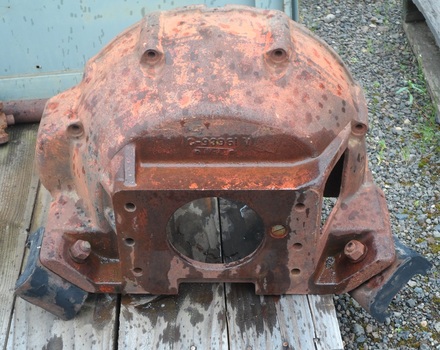

This is a Lager Big Block hydraulic clutch type bell housing use from 1961to 68 in Big Dodge trucks engine 361 & 413 . . Bolt Patten for Transmission late NP420 4sp with the v8 input , np435 4sp & np540 5sp . Casting p/n C93961, 16" flywheel with 12 or 13" clutch assy

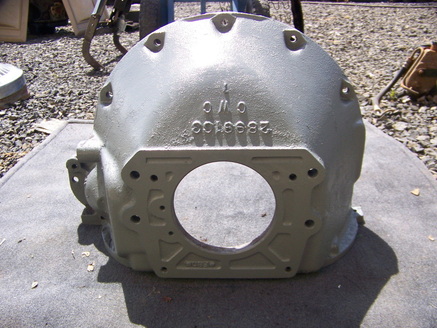

DODGE TRUCK SMALL BLOCK BELL-HOUSING Casting #2899163 , 1969 -93 W-D trucks 318 340 360
made in both steel & aluminum.
made in both steel & aluminum.

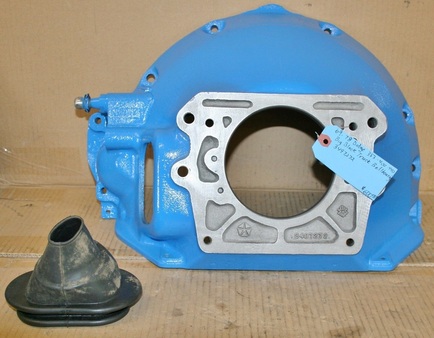

1969-78 Dodge Big Block Truck Bellhousing
383 400 440 casting # 3497272
383 400 440 casting # 3497272
